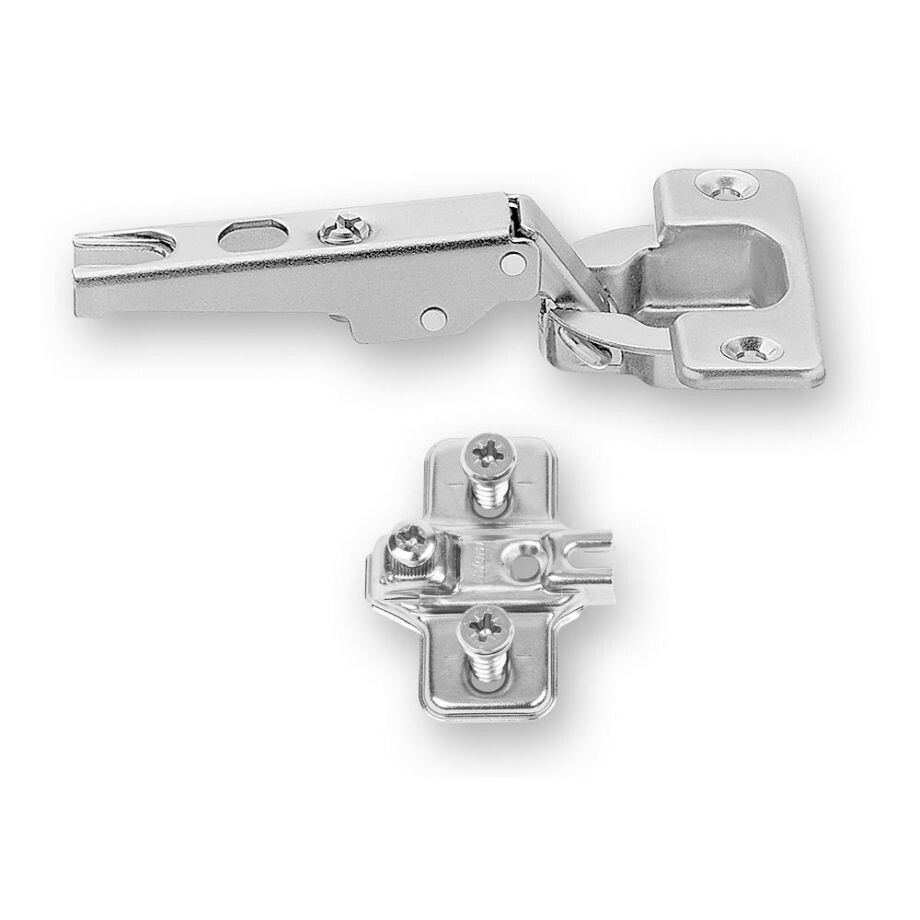

BLUM MODULE BASIC HINGE - BOBH009
₵20.00
Sold out
Sold out
BLUM MODULE BASIC HINGE - BOBH009
Product Details
- All metal hinge, nickel plated.
- 100 degree opening angle.
- Door closing mechanism (sprung).
- Slide on hinge arm.
- 3-dimensional adjustment (with suitable mounting plate).
| Opening | 100 |
| Boss | Screw on |
| Overlay | Full |
| Box Qty | 250 |
Additional Features / Properties
| Cover cap type | 90M2503 |
| Type of side adjustment | With screw |
| Type of depth adjustment | With screw |
| Item package | 1 piece |
| Maximum drilling distance | 6 mm |
| Minimum drilling distance | 3 mm |
| Fixed dimension / factory setting | 11 mm |
| Weight | 444.14 kg |
| collision measurement (hinge arm height) | 20 mm |
| Cranking | Overlay application |
| Country of origin | AT |
| Delivery unit | 250 |
| Height Outside carton | 21.1 cm |
| Layer quantity | 2000 |
| Lenght Outside carton | 37.5 cm |
| Palette height without transport equipment | 106 cm |
| Pallet quantity | 10000 |
| Replenishment lead time | 2 day |
| Transport time | 2 day |
| Volume/1000 | 96.67 dm³ |
| Weight (tare)/1000 | 1.834 kg |
| Width Outside carton | 29.9 cm |
| mounting plate system | MODUL |
| Colour/surface | Nickel plated |
| Opening angle | 100 |
| Closing mechanism | with spring |
| SAP-Distribution status | 20 - On sale |
| SAP - Program allocation | SP - Stock Program |
| Side adjustment | +/- 2 mm mm |
| Depth adjustment | +/- 2 mm mm |
| Boss assembly | screw-on |
| Boss material | Steel boss |
| boss finish | Nickel plated |
| Boss adjustment | none |
| door material | Wood |
| Gap | 0 mm |
| Weight based on | 10000 Piece |
| application | standard hinge |
| packaging | industrial packing |
| Packaging unit 1 | 250 |
