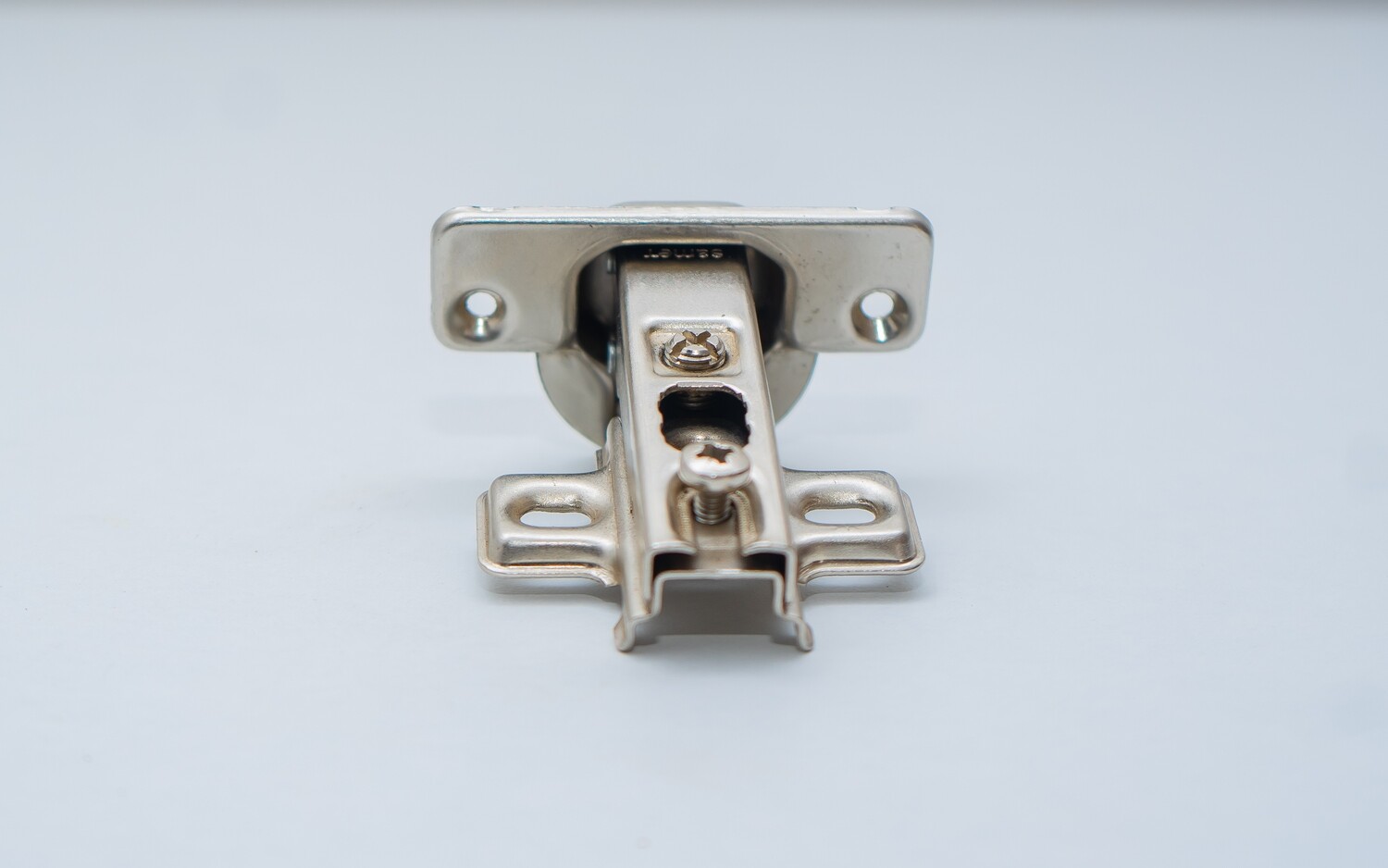

SAMET BASIC HALF CAMEL HINGE - HSMT005
₵34.00
In stock: 1600 available
SAMET BASIC HALF CAMEL HINGE - HSMT005
Product Details
| Usage/Application | Cabinet Fitting |
| Suitable For | Cabinet |
| Hinge Type | Full Overlay Hinge |
| Brand | Slimline |
| Size | 34 x 22 inch |
| Finish Type | Chrome Finish |
| Material | Stainless Steel |
| Application | Modular Hinge |
Product Description
Features:
- Suitable for thick panels
- Wide opening angle for easy storage in cabinet
- Nickel plated for corrosion resistance
- Maximum shutter size 34”x22” for 2 hinges
- Suitable for cabinet doors from 15 mm to 22 mm thickness
- Shutter cavity: inner 40mm, 13.5 mm deep
- Hinge should be fitted using screws and should not be hammered
- Do not apply paint, polish or brush.
- Avoid pushing beyond 100 degree to prevent damage to hinge
Specifications:
| Code | Type |
| 7071 | Fully overlay (0 Degree) |
| 7072 | Half overlay (8 Degree) |
| 7073 | Inset (15 Degree) |
